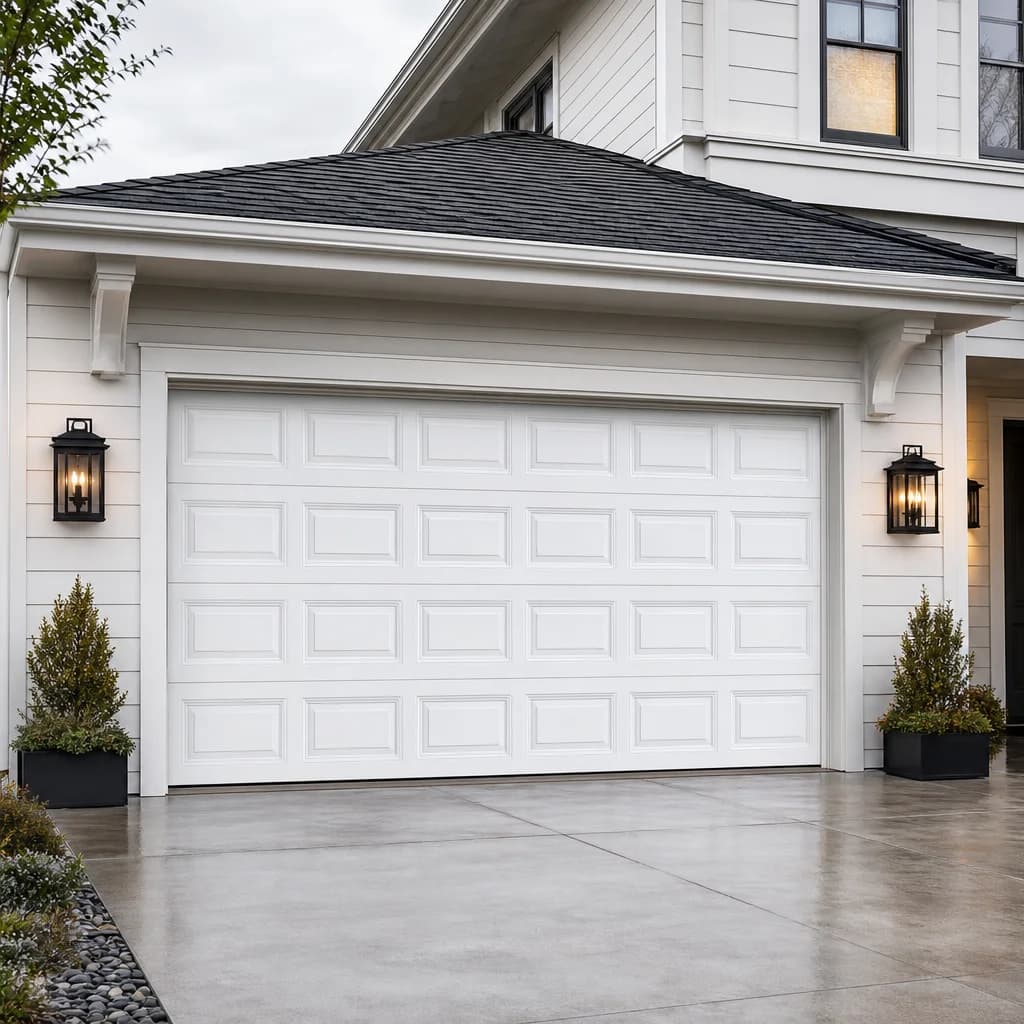

Classic Pan — Short Raised Panel
Starting Price
$1,350
$1,500.00
Door Size— 16 × 7 ft
How to measure your opening
Always measure the structural opening — never the existing door panel. A garage door is built larger than the hole it covers, so measuring the door itself is the single most common cause of a door that will not fit.
Replacing an existing door
- Width: measure across the finished opening from the inside face of one side jamb to the inside face of the other.
- Height: measure from the garage floor straight up to the underside of the header at the top of the opening.
New build or rough framing
- Measure the framed rough opening: jamb to jamb for width, and from the finished floor level to the bottom of the header for height.
- Exclude any trim, stop moulding or weather seal — those sit outside the opening.
Also check the surrounding space
- Headroom: at least 12 in between the top of the opening and the ceiling for a standard lift, or 15 in for a low-headroom track.
- Sideroom: at least 3¾ in of clear wall on each side of the opening for the vertical track.
- Backroom: the door height plus 18 in of clear depth into the garage.
Take each measurement in three places — left, centre and right for width, and both sides plus the middle for height — then use the smallest figure. Openings are rarely perfectly square. Record everything in feet and inches to the nearest ¼ in.
Not confident? Request a free estimate and we will measure the opening for you and confirm the exact size before anything is ordered.
Color— Almond
Glass— No Glass
Window Design— No Windows
Diagrams show the window layout. All window designs are included at no extra cost when glass is selected, and your choice is confirmed with your order.
1
Ready to move forward?
Get Your Free Estimate
Our team will survey your opening, walk you through every option, and provide a transparent quote — at no cost.
