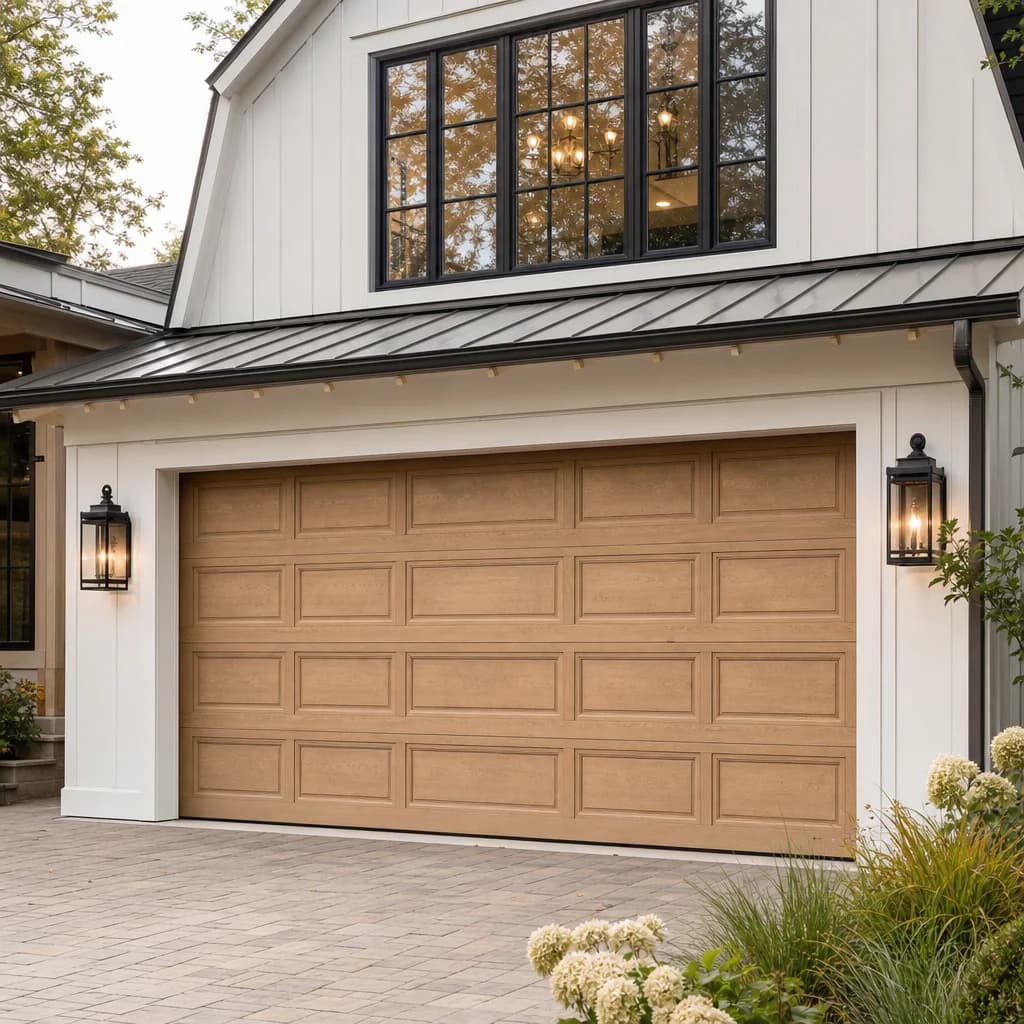

Wood-like Custom Steel — Short Panel
Starting Price
$2,999
$2,999.00
Door Size— 16 x 7 ft
How to measure your opening
Always measure the structural opening — never the existing door panel. A garage door is built larger than the hole it covers, so measuring the door itself is the single most common cause of a door that will not fit.
Replacing an existing door
- Width: measure across the finished opening from the inside face of one side jamb to the inside face of the other.
- Height: measure from the garage floor straight up to the underside of the header at the top of the opening.
New build or rough framing
- Measure the framed rough opening: jamb to jamb for width, and from the finished floor level to the bottom of the header for height.
- Exclude any trim, stop moulding or weather seal — those sit outside the opening.
Also check the surrounding space
- Headroom: at least 12 in between the top of the opening and the ceiling for a standard lift, or 15 in for a low-headroom track.
- Sideroom: at least 3¾ in of clear wall on each side of the opening for the vertical track.
- Backroom: the door height plus 18 in of clear depth into the garage.
Take each measurement in three places — left, centre and right for width, and both sides plus the middle for height — then use the smallest figure. Openings are rarely perfectly square. Record everything in feet and inches to the nearest ¼ in.
Not confident? Request a free estimate and we will measure the opening for you and confirm the exact size before anything is ordered.
Color— Wood-like Light Finish
Construction— Pan (Non-Insulated)
Glass— No Glass
Window Design— No Windows
Diagrams show the window layout. All window designs are included at no extra cost when glass is selected, and your choice is confirmed with your order.
1
Licensed & Insured
5-Star Rated
Local Service
The beauty of real wood. The integrity of steel. The Wood-like Custom Steel Short Panel is engineered to be indistinguishable from a real wood door at a glance — with a proprietary wood-grain emboss on steel that captures depth, grain variation, and warmth in a way that outlasts and outperforms natural timber. Available in light and dark wood finishes across Pan, PolyBack, and SteelBack constructions — choose your insulation level without compromising the aesthetic.
Construction Options: Pan (non-insulated), PolyBack (polystyrene + 3mm poly back skin), SteelBack (full insulated sandwich)
Available Colors: Wood-like Light Finish, Wood-like Dark Finish
Glass Options: Clear, Tinted, Frosted, Black Laminated, White Laminated, Obscure — with optional black frame upgrade
Panel Style: Short Raised Panel
- Every Entrancio door is professionally installed by our certified technicians across Orange County and Los Angeles County — included with your purchase.
- Our team handles everything: removal of your existing door, full installation, hardware fitting, and opener integration.
- Your installation is scheduled with you after checkout, typically within 1–4 weeks.
- Every installation concludes with a full operational inspection and walkthrough with your technician.
- All prices shown are all-inclusive — professional installation, delivery, removal of your existing door, hardware fitting, and opener integration are included.
- Final pricing may vary based on your specific opening size, finish selection, glass upgrades, or hardware choices — we will confirm exact pricing during your complimentary site visit.
- A free, no-obligation design consultation and estimate is available for all projects.
- Financing options are available — ask your Entrancio design consultant for details.
- Wash the exterior surface with mild soap and water twice per year to maintain finish quality.
- Lubricate hinges, rollers, and springs annually with a silicone-based garage door lubricant.
- Inspect weather seals seasonally; replace if cracked or hardened.
- Test balance and auto-reverse annually — contact Entrancio for a professional tune-up service.
Ready to move forward?
Get Your Free Estimate
Our team will survey your opening, walk you through every option, and provide a transparent quote — at no cost.
